In electrical and industrial applications, protecting wires and components from damage is essential for safety and performance. One of the most widely used protective materials is the heat Shrink Tube. It provides insulation, protection, and strain relief for wires and cables in a simple yet highly effective way.
In this article, we will explain what heat Shrink Tubes are, how they are used, how to apply them correctly, and the different types of heat shrink tubing available for various applications.

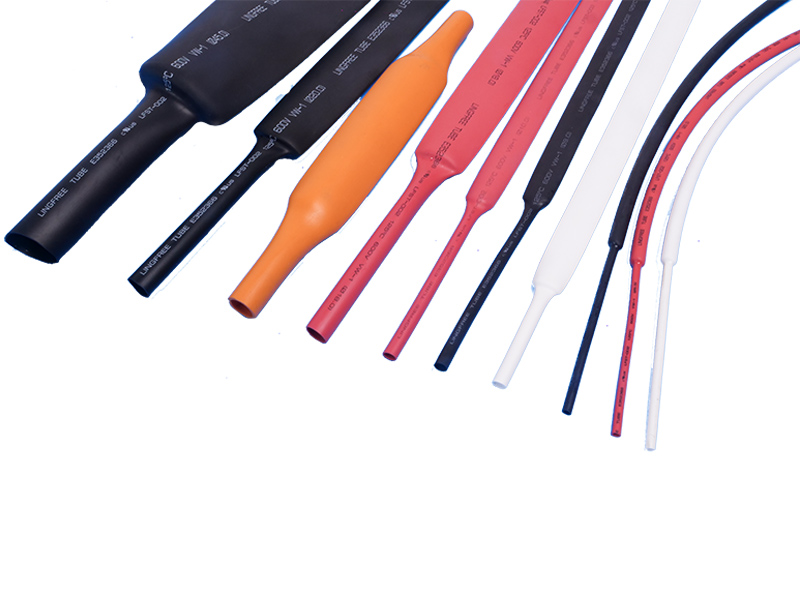

What Are Heat Shrink Tubes?
A heat shrink tube (also called heat shrink sleeving, heat shrink wire sleeve, or heat shrink insulation tube) is a flexible plastic tube that shrinks in diameter when heat is applied. It is commonly used to insulate and protect electrical wires, cable joints, and terminals.
When exposed to heat from a heat gun or similar tool, the tube contracts tightly around the object, forming a secure protective layer. This creates a durable electrical insulation tube that helps prevent moisture, abrasion, and electrical short circuits.
What Is a Heat Shrink Tube Used For?
Heat shrink tubes are used in many industries, especially in electrical, automotive, aerospace, and electronics manufacturing. Their main functions include:
1. Electrical Insulation
They act as a protective barrier around wires, preventing short circuits and electrical leakage.
2. Wire Protection
Heat shrink tubing protects cables from abrasion, chemicals, and environmental damage.
3. Strain Relief
It reduces stress at connection points, preventing wire breakage.
4. Cable Bundling
Multiple wires can be grouped together using shrink wrap tube for a cleaner and safer setup.
5. Waterproofing and Sealing
Some types provide moisture resistance, making them ideal for outdoor and marine applications.
6. Color Coding and Identification
Different colors of heat shrink tubing help identify wires and circuits easily.
Types of Heat Shrink Tubing
There are several types of heat shrink tubing, each designed for specific environments and applications.
PVC Heat Shrink Tube
PVC heat shrink tube is widely used for general electrical insulation. It offers good flexibility and cost-effectiveness, making it suitable for consumer electronics and light-duty applications.
PTFE Heat Shrink Tube
PTFE heat shrink tube provides excellent chemical resistance and high-temperature performance. It is commonly used in aerospace, medical devices, and industrial environments.
Silicone Heat Shrink Tube
Silicone heat shrink tube is highly flexible and resistant to extreme temperatures. It is ideal for sensitive electronic components and high-performance systems.
High Temperature Heat Shrink Tube
High temperature heat shrink tube is designed for environments exposed to heat, such as automotive engines, industrial machinery, and power systems.
Each type of heat shrink insulation tube is selected based on temperature range, chemical exposure, and mechanical requirements.
How to Use Heat Shrinking Tube
Using a heat shrink tube is simple, but proper installation ensures maximum protection and durability.
Step 1: Select the Right Size
Choose a tube that fits loosely over the wire or component before shrinking.
Step 2: Cut to Length
Cut the heat shrink tubing slightly longer than the area you want to cover.
Step 3: Slide the Tube Over the Wire
Position the tube over the joint, connector, or damaged section.
Step 4: Apply Heat
Use a heat gun or controlled heat source to evenly shrink the tube. Avoid open flames as they may damage the material.
Step 5: Allow to Cool
Let the tube cool and fully contract, forming a tight protective seal.
After shrinking, the tube becomes a firm heat shrink wire sleeve that securely wraps around the wire or connection.
Advantages of Heat Shrink Tubing
Using heat shrink tubes provides several important benefits:
Strong Electrical Protection
Prevents short circuits and improves safety in electrical systems.
Durable and Long-Lasting
Resistant to wear, moisture, and chemicals.
Easy Installation
Simple application process using basic heating tools.
Versatile Applications
Suitable for automotive wiring, electronics, industrial machinery, and household repairs.
Neat Appearance
Provides a clean and professional finish to wiring systems.
Applications of Heat Shrink Sleeving
Heat shrink sleeving is widely used across many industries:
Electrical wiring systems
Automotive harnesses
Aerospace wiring protection
Telecommunication cables
Marine electrical systems
Industrial equipment
DIY electronics projects
Because of its flexibility and reliability, it has become a standard solution in cable protection and insulation.
A heat shrink tube is a highly effective solution for insulating, protecting, and organizing electrical wires and components. Whether you are using PVC heat shrink tube, PTFE heat shrink tube, or silicone heat shrink tube, each type offers specific advantages depending on the application.
By learning how to use heat shrinking tube correctly, you can significantly improve the safety, durability, and appearance of electrical installations. As a reliable electrical insulation tube, heat shrink tubing remains an essential material in modern electrical and industrial systems.
