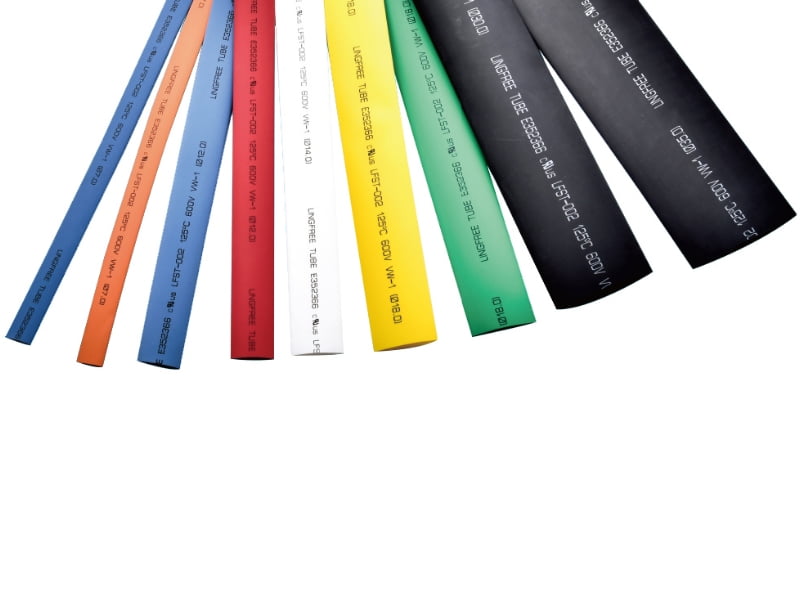

What is Heat Shrink Tubing
Heat shrink tubing is a versatile and essential component in the world of electrical and mechanical protection. If you have ever wondered what is heat shrink tubing, it is a specially formulated plastic tube that shrinks when heated, forming a tight, protective seal around wires, joints, or other components. It is widely used in industries like electronics, automotive, aerospace, and manufacturing to provide insulation, strain relief, and mechanical protection.
What is Heat Shrink Tubing Made Of
Heat shrink tubing is typically made from polymer materials like polyolefin, PVC, PTFE, PVDF, or elastomer blends. Each material offers different benefits:
Polyolefin – The most common choice due to its excellent insulation, durability, and flexibility.
PTFE Heat Shrinkable Tubing – Offers exceptional chemical resistance and can handle very high temperatures, making it ideal for aerospace or chemical environments.
PVDF Heat Shrinkable Tubing – Provides excellent flame resistance and mechanical strength.
Pattern Heat Shrink Tube – Adds visual appeal and identification for cables.
How Does Heat Shrink Tubing Work
The process relies on the material's memory. During manufacturing, the tubing is expanded and cooled. When reheated, it returns to its original smaller size, tightly wrapping around the underlying material. This simple mechanism provides a secure seal, which can also be waterproof depending on the material.
Is Heat Shrink Tubing Waterproof
Many types of heat shrink tubing offer waterproof or moisture-resistant performance, especially those with adhesive lining inside. For example, Ul Heat Shrinkable Sleeve is often designed to meet high safety standards and provide sealed protection for electrical splices.
What is Heat Shrink Tubing Used For
Heat shrink tubing has multiple applications:
Electrical insulation – Prevents short circuits and protects wires.
Mechanical protection – Shields cables from abrasion and vibration.
Strain relief – Reduces stress on wire connections.
Identification – Color-coded or patterned tubing helps with wire management.
Busbar Heat Shrink Tubing – Specifically designed to insulate and protect busbars in switchgear and power distribution systems.
How to Use Heat Shrink Tubing
Using heat shrink tubing is straightforward:
Measure and Cut – Select the correct size of tubing (considering the shrink ratio) and cut it to length.
Slide Over the Component – Position the tubing over the wire joint or section to be covered.
Apply Heat – Use a heat gun, lighter, or other heat source to evenly heat the tubing. It will shrink and form a tight fit.
Cool Down – Allow it to cool and check the seal.
Types of Heat Shrink Tubing
Ul Heat Shrinkable Sleeve – Certified for safety-critical applications.
Busbar Heat Shrink Tubing – Thick-walled tubing designed for power systems.
PTFE Heat Shrinkable Tubing – Excellent for harsh chemical and high-temperature conditions.
Pattern Heat Shrink Tube – Used for decorative or identification purposes.
PVDF Heat Shrinkable Tubing – Ideal where flame resistance is required.
Heat shrink tubing is a simple but powerful solution to protect, insulate, and organize electrical systems. Whether you are working with delicate electronics or high-voltage power systems, there is a suitable type of tubing available. From Busbar Heat Shrink Tubing to PTFE Heat Shrinkable Tubing and Pattern Heat Shrink Tube, each product serves a unique purpose. Understanding how to use heat shrink tubing and knowing how does heat shrink tubing work can greatly improve the safety and reliability of your projects.
