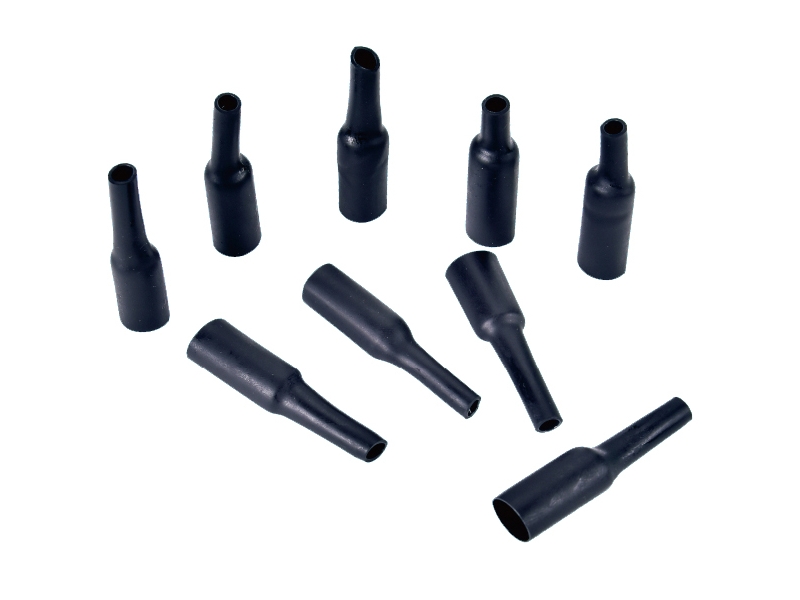

The Double Wall Heat Shrink Cap is a specialized protective component designed for sealing and insulating wire connections, terminals, and other electrical components. Composed of an outer polyolefin layer and an inner adhesive lining, it provides superior environmental protection, mechanical strength, and electrical insulation. This article explores its key features, applications, and maintenance practices
Key Features with Technical Data
Dual-Layer Construction: The outer layer is made of cross-linked polyolefin (typically 1.5–2.0 mm thick), offering UV resistance and a temperature range of -55°C to +125°C. The inner adhesive layer (0.3–0.5 mm thick) melts at 90°C–120°C, ensuring a waterproof seal.
Shrink Ratio: Standard ratios include 2:1 or 3:1, allowing the cap to conform tightly to irregular shapes after heating.
Dielectric Strength: Exceeds 15 kV/mm, making it suitable for high-voltage applications.
Flame Retardancy: Complies with UL 224 or IEC 60695-11-10 standards, with a self-extinguishing time of ≤30 seconds.
Environmental Resistance: IP68-rated against moisture and dust ingress, with a peel strength of ≥10 N/cm for long-term adhesion.
Applications
Double Wall Heat Shrink Caps are widely used in industries requiring robust insulation and sealing:
Automotive: Protects battery terminals and wiring harnesses from corrosion (e.g., in EVs with 400V–800V systems).
Aerospace: Shields avionics connectors in environments with -65°C to +260°C thermal cycles.
Marine: Prevents saltwater corrosion on shipboard electrical systems (tested per ASTM B117 salt spray standards).
Renewable Energy: Seals solar panel junction boxes (up to 1,500V DC) and wind turbine cables.
Industrial Machinery: Insulates high-amperage connections (e.g., 500A busbars) in manufacturing plants.
Installation Guidelines
Preparation: Clean surfaces with isopropyl alcohol to remove contaminants (surface roughness ≤3.2 µm recommended).
Sizing: Select a cap with a pre-shrink diameter 20% larger than the component (e.g., 12 mm cap for a 10 mm terminal).
Heating: Use a heat gun at 300°C–350°C, maintaining a 5–10 cm distance. Rotate evenly for 30–60 seconds until full shrinkage and adhesive flow are achieved.
Inspection: Verify no wrinkles or gaps exist, and adhesive forms a continuous seal around the base.
Maintenance Practices
To ensure longevity:
Routine Checks: Inspect every 6–12 months for cracks or adhesive degradation (use IR thermography to detect hotspots).
Cleaning: Wipe with a silicone-free cloth; avoid abrasive cleaners that may damage the polyolefin layer.
Replacement: Replace if the cap shows >5% radial shrinkage beyond initial installation or if dielectric tests fail (insulation resistance <100 MΩ at 500V DC).
Storage: Keep in original packaging at 15°C–25°C, away from direct sunlight (shelf life: 5 years).
The Double Wall Heat Shrink Cap is a critical solution for durable electrical protection across demanding industries. Proper selection, installation, and maintenance maximize its performance and service life.
