How to Use Dual Wall Heat Shrink Tubing?

Dual Wall Heat Shrink tubing is widely used in electrical, automotive, telecommunications, and industrial applications because it provides both insulation and environmental sealing. Unlike standard heat shrink tubing, dual wall tubing features an inner adhesive layer that melts during heating, creating a moisture-resistant and durable seal around cables, wires, and connectors.

In many cable termination and sealing applications, a Heat Shrink End Cap or Double Wall Heat Shrink Cap is also used to completely seal the end of a cable, preventing water, dust, and contaminants from entering. This guide explains how to properly use dual wall heat shrink tubing and the benefits of combining it with a High-Performance Heat Shrink Cap.

What Is Dual Wall Heat Shrink Tubing?

Dual wall heat shrink tubing consists of two layers:

• Outer Layer: Provides insulation, mechanical protection, and abrasion resistance.

• Inner Adhesive Layer: Melts when heated, creating a waterproof and airtight seal.

This design makes dual wall tubing ideal for harsh environments where cables are exposed to moisture, chemicals, or extreme temperatures.

Why Use a Double Wall Heat Shrink Cap?

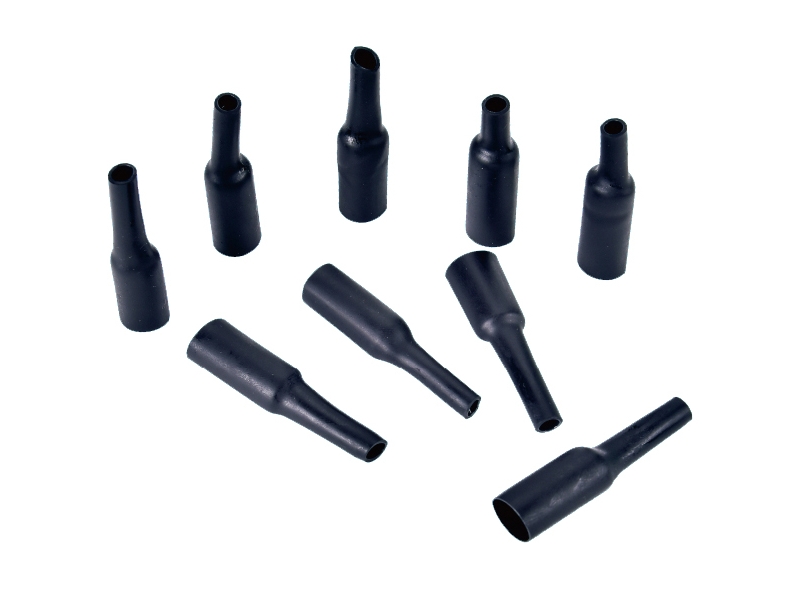

A Double Wall Heat Shrink Cap is specifically designed to seal the end of cables and wire bundles. Like dual wall tubing, it contains an internal adhesive layer that melts during installation, creating a secure environmental seal.

Benefits include:

• Excellent waterproof protection

• Dust and dirt resistance

• Corrosion prevention

• Enhanced cable lifespan

• Improved reliability in outdoor installations

Many industries source these products from a professional Double Wall Heat Shrink Cap Supplier to ensure long-term performance and consistent quality.

Tools Required

Before installation, prepare the following:

• Dual wall heat shrink tubing

• Heat Shrink End Cap

• Heat gun or industrial heating equipment

• Cable cutter

• Measuring tape

• Protective gloves

Avoid using open flames whenever possible, as they may cause uneven heating and damage the tubing.

Step-by-Step Guide: How to Use Dual Wall Heat Shrink Tubing

Step 1: Select the Correct Size

Choose tubing with a diameter slightly larger than the cable or connector before shrinking. Verify the shrink ratio to ensure a snug fit after heating.

For cable terminations, select a properly sized Heat Shrink Cap that matches the cable diameter.

Step 2: Prepare the Cable

Clean the cable surface to remove:

• Dust

• Oil

• Moisture

• Debris

A clean surface helps the adhesive bond more effectively.

Step 3: Position the Tubing

Slide the dual wall heat shrink tubing over the area that requires protection.

If sealing the cable end, place the Double Wall Heat Shrink Cap onto the cable termination point.

Step 4: Apply Heat Evenly

Using a heat gun, apply heat evenly around the tubing.

Start from the center and move toward the ends to avoid trapping air bubbles.

For a Heat Shrink End Cap, begin heating at the closed end and continue toward the cable entry point.

Step 5: Observe Adhesive Flow

As the tubing shrinks, the inner adhesive layer melts and flows around the cable surface.

A properly installed High-Performance Heat Shrink Cap will show a small amount of adhesive extrusion around the cable entry point, indicating a complete seal.

Step 6: Allow Cooling

After heating, allow the assembly to cool naturally.

Do not move or disturb the tubing until the adhesive has fully solidified.

Common Applications

Electrical Systems

Dual wall tubing protects wire connections from moisture and electrical failure.

Telecommunications

A Heat Shrink Cap helps seal fiber optic and communication cables in outdoor environments.

Automotive Wiring

Protects wiring harnesses from vibration, water, and road contaminants.

Renewable Energy Projects

Used in solar and wind power installations where environmental protection is critical.

Underground and Marine Cables

A High-Performance Heat Shrink Cap provides reliable sealing in demanding conditions.

Benefits of Using Heat Shrink End Caps

Superior Environmental Protection

A properly installed Heat Shrink End Cap blocks moisture, dust, and corrosive substances.

Extended Cable Life

Sealing cable ends prevents premature degradation caused by environmental exposure.

Easy Installation

Heat shrink caps require minimal tools and can be installed quickly in the field.

Cost-Effective Maintenance

By reducing cable failures, heat shrink sealing solutions help lower maintenance costs.

Choosing a Reliable Heat Shrink Cap Manufacturer

When selecting a Heat Shrink Cap Manufacturer, consider:

Product Quality

Look for products that meet industry standards for insulation and sealing performance.

Material Performance

Choose products that offer:

• UV resistance

• Chemical resistance

• Temperature resistance

• Long-term durability

Manufacturing Experience

An experienced Double Wall Heat Shrink Cap Manufacturer can provide technical guidance and customized solutions for various applications.

Supply Capability

Working with a dependable Double Wall Heat Shrink Cap Supplier ensures stable product availability and consistent quality.

Understanding How to Use Dual Wall Heat Shrink Tubing is essential for achieving reliable cable insulation and environmental protection. By following proper installation procedures and using a quality Heat Shrink End Cap or Double Wall Heat Shrink Cap, you can create durable, waterproof seals that extend cable life and improve system reliability.

Whether you need standard cable protection or advanced sealing solutions, partnering with a trusted Heat Shrink Cap Manufacturer and Double Wall Heat Shrink Cap Supplier ensures access to high-quality products designed for demanding industrial applications.
